ESP32-S3 Development Board 2.8-inch Capacitive Touch Screen SPI Interface Five-Point Touch LVGL Image Support WIFI
Description:

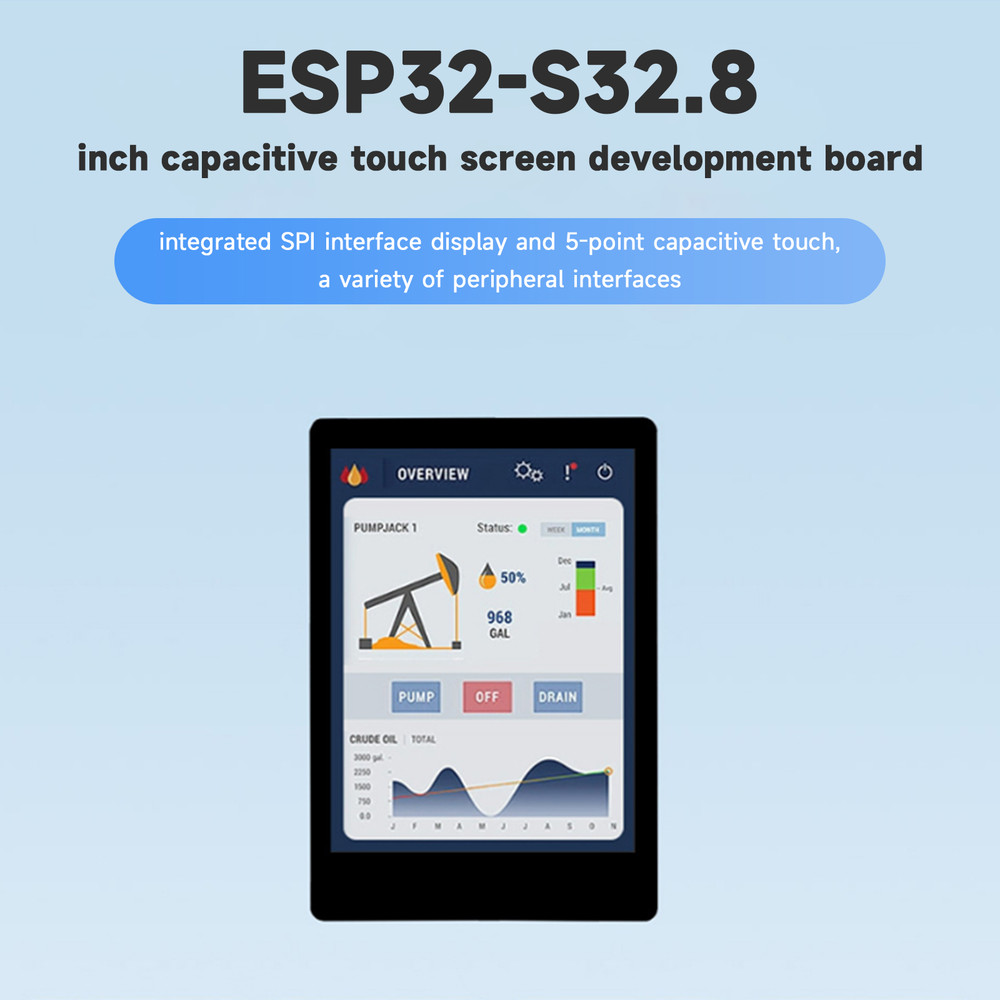

ESP32-S3-Touch-LCD-2.8 is a microcontroller development board that supports 2.4GHz WiFi and Bluetooth BLE 5. It integrates large-capacity Flash and PSRAM, and has an onboard 2.8-inch capacitive touch screen. It can run GUI interface programs such as LVGL smoothly; combined with a variety of peripheral interfaces, it can quickly develop applications such as HMI of ESP32-S3.
Features:
1.Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
2.Support 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
3.Onboard 512KB SRAM and 384KB ROM, stacked 16MB Flash and 8MB PSRAM
4.Onboard 2.8-inch capacitive touch screen, 240 x320 resolution, 262K color

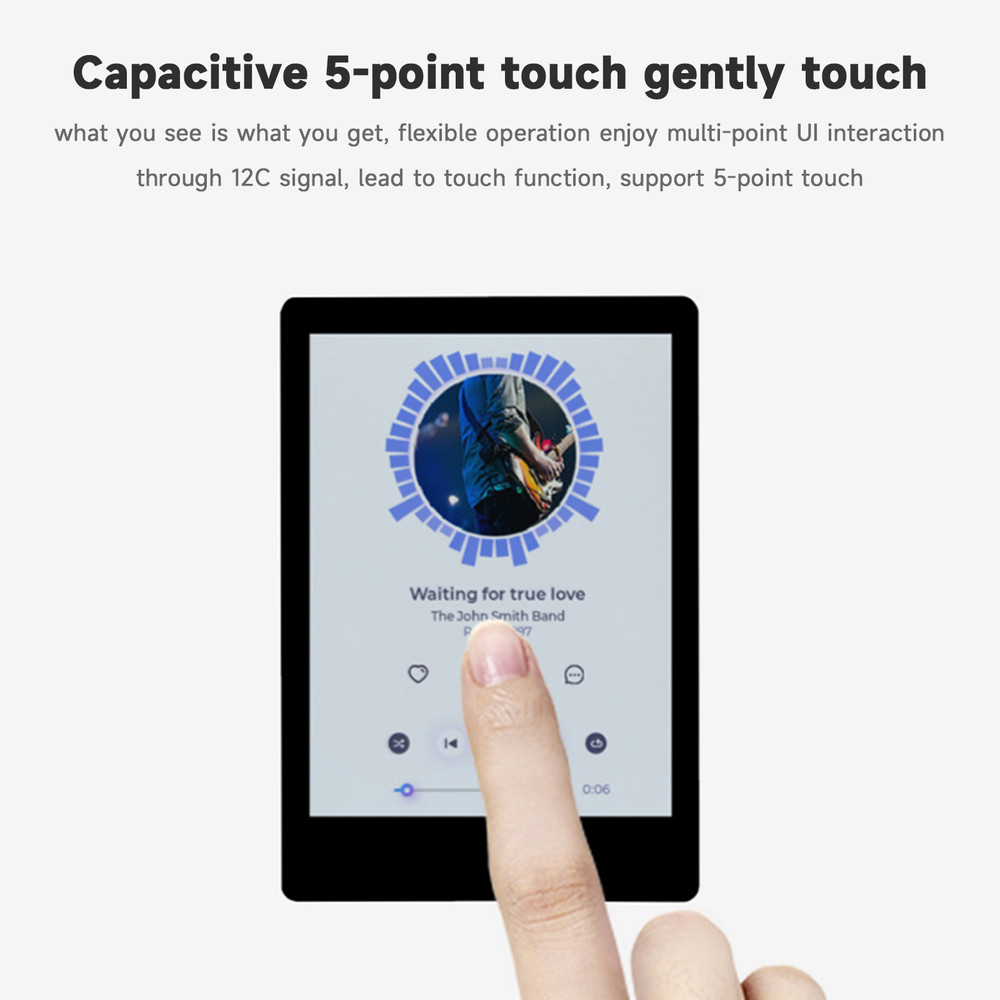

5.Support I2C interface to control capacitive touch, 5-point touch, support interruption
6.Lead out UART, I2C and some 10 interfaces, integrated full-speed USB serial port

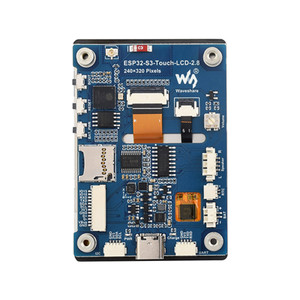

7.Onboard speaker, QMI8658 six-axis sensor, RTC clock sensor, Micro SD card holder and battery charging management module, etc.
8.Support flexible clock, multiple power modes and other accurate control, realize multi-scenario low power mode
Application scenarios
Multiple outputs
It can be used as an information output unit in terms of display and audio. Customers can design it according to their needs to realize information interaction in terms of images and audio.
HMI Human-machine interface
The human-machine interface (also known as the user interface or user interface) is a medium for interaction and information exchange between the system and the user. It realizes the conversion between the internal form of information and the form acceptable to humans.
LVGL GUI development
LVGL is a free open source graphics library that provides everything you need to create embedded GUIs with easy-to-use graphic elements, beautiful visual effects and low memory usage.
Package Include:
1x Touch screen development board body
1x SH1.0 12PIN connection cable about 100mm
2x SH1.0 4PIN connection cable about 100mm
1x 2030 speaker
