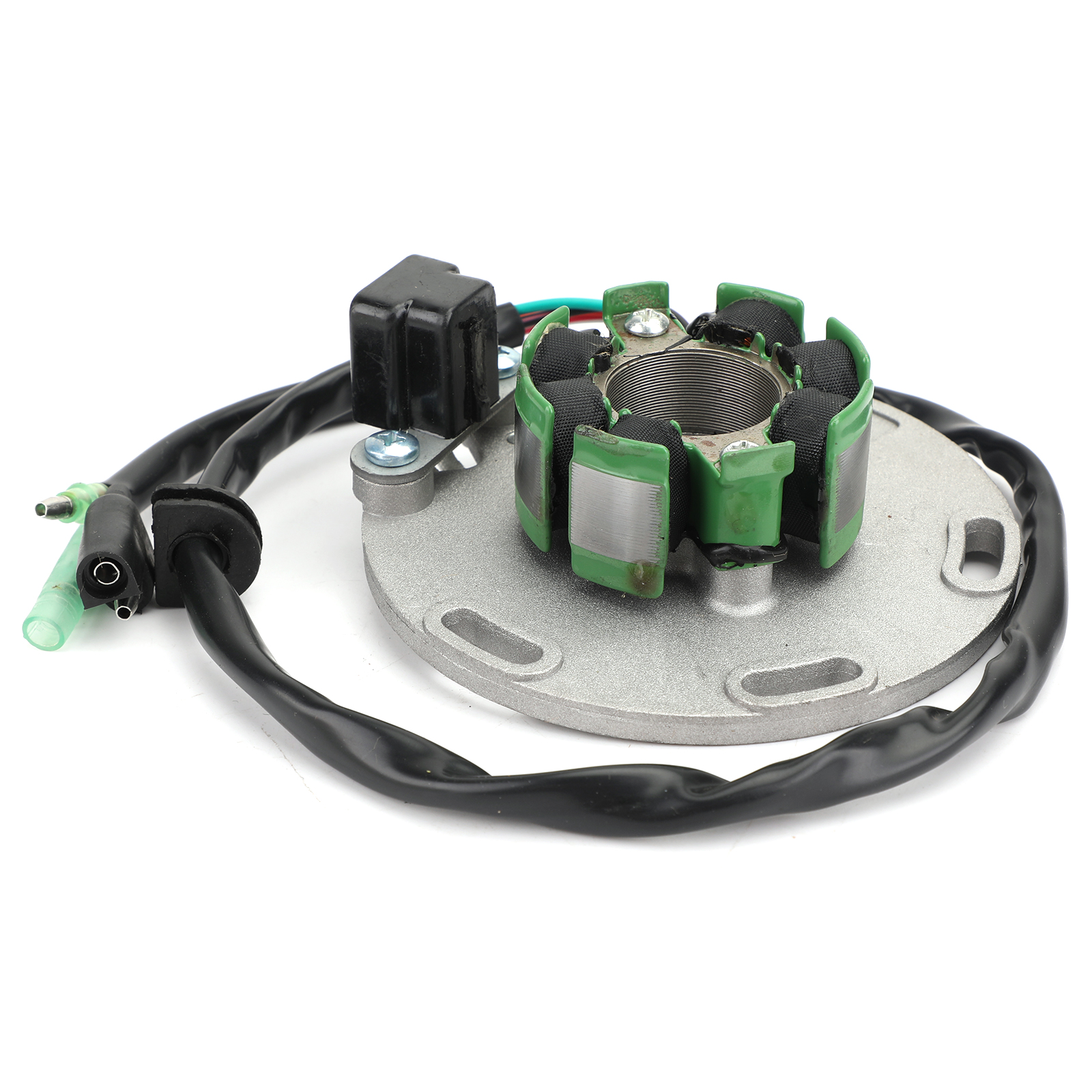

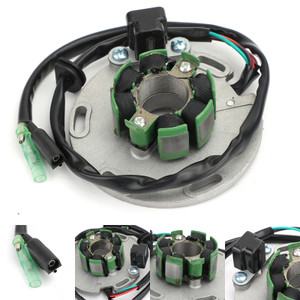

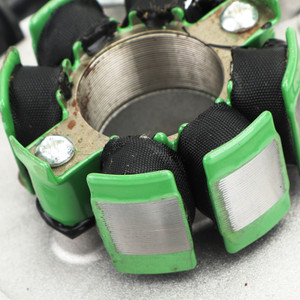

Magneto Generator Engine Stator Coil For Suzuki 32101-01B30,32101-01B31,32101-00B30,32101-28C01,32101-28C02,32101-28C03,32101-00B31,32101-01B32,32101-28C00
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:32101-01B30,32101-01B31,32101-00B30,32101-28C01,32101-28C02,32101-28C03,32101-00B31,32101-01B32,32101-28C00

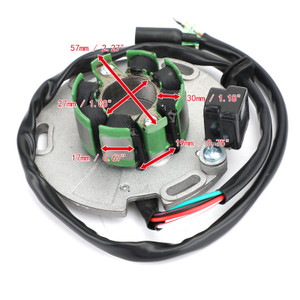

Dimensions :
Interior diameter : 27mm / 1.08"
Exterior diameter : 57mm / 2.27"
Pole's Thickness : 30mm / 1.18"
Pole's Width : 17mm / 0.67"
Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 4
Number of fixation holes: 4
Number of poles: 8
Fixation holes length: 19mm / 0.75"
Bottom Length:110mm/4.33"
FITMENT:
For Suzuki RM125 1986-1988
For Suzuki RM250 1986-1995
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:32101-01B30,32101-01B31,32101-00B30,32101-28C01,32101-28C02,32101-28C03,32101-00B31,32101-01B32,32101-28C00
Dimensions :
Interior diameter : 27mm / 1.08"
Exterior diameter : 57mm / 2.27"
Pole's Thickness : 30mm / 1.18"
Pole's Width : 17mm / 0.67"
Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 4
Number of fixation holes: 4
Number of poles: 8
Fixation holes length: 19mm / 0.75"
Bottom Length:110mm/4.33"
FITMENT:
For Suzuki RM125 1986-1988
For Suzuki RM250 1986-1995
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
