Raspberry Pi Zero 2w to CM3 expansion board Raspberry pi CM3 core board alternative adapter board
Description:
Raspberry Pi Zero2w to CM3 expansion board, Raspberry Pi CM3/CM3+ core board alternative, only supports Zero 2 w, not compatible with Zero generation
Based on the design of Raspberry Pi Zero 2 w, you can use Zero2w to make a product that basically replaces CM3
Say goodbye to "air" boards
Easy to assemble, using 40PIN GPIO and ejector pin method to connect to Zero 2 w motherboard design
Can be inserted directly and easily
Interface: Camera interface, USB, USB OTG, HDMI interface, GPIO, Micro SD card ejector pin interface

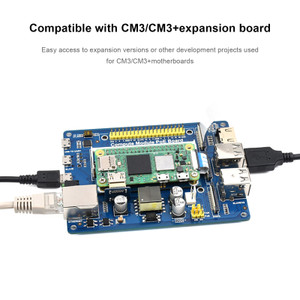

Compatible with CM3/CM3+ expansion boards, easily access expansion boards used by CM3/CM3+ motherboards or other development projects
Note:
The pin header needs to be reversely soldered. If you don¡¯t need to use the HDMI interface, you can leave it alone to reduce the overall size.
Features:
¡¤Adopts 40PIN GPIO and ejector pin to connect to Zero2w motherboard design, which can be easily inserted
¡¤The onboard standard CM3 core board golden finger interface allows easy access to the expansion board of the original CM3 ecosystem.
¡¤Lead out the USB interface, microSD card port, OTG, etc. through the ejection pin
¡¤Introduce the camera through FPC
¡¤Output HDMI through miniHDMI adapter board
¡¤Introduce GPIO through socket
¡¤Not compatible with Zero generation
Package Included:
1x Raspberry Pi Zero to CM3 Extension Board
