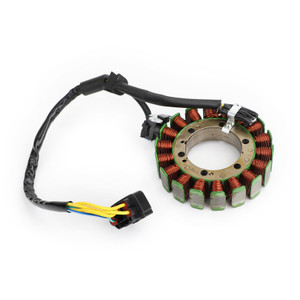

Magneto Generator Engine Stator Coil Fit for Honda TRX 680 FA Rincon 680 2015-2021 31120-HN8-F41
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 53.6mm/2.11"
Exterior diameter : 115mm/4.52"
Pole's Thickness : 29.6mm/1.16"
Pole's Width : 14.5mm/0.57"
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1
Number of fixation holes: 6(+2)
Number of poles: 18
REPLACEMENT PART NUMBER:
31120-HN8-F41
Fitments:
Fit for Honda TRX680FA Rincon 680 2015-2021
Fit for Honda TRX680 TRX680FA 2AC 2015-2018
Fit for Honda TRX680 TRX680FA AC 2015-2018
Fit for Honda TRX680 TRX680FA 3AC 2017
Fit for Honda TRX680 TRX680FA 2A 2018
Fit for Honda TRX680 TRX680FA A 2018
Fit for Honda TRX680 TRX680FA5 2AC 2019-2020
Fit for Honda TRX680 TRX680FA5 AC 2019-2021
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Delivery:
Free Shipping
Delivery Time:3-10 Working Days
Warranty:
Warranty Period:1 Years
Return:Goods can be returned within 60 days of receipt
24-Hour Support:Customer service throughout the day
