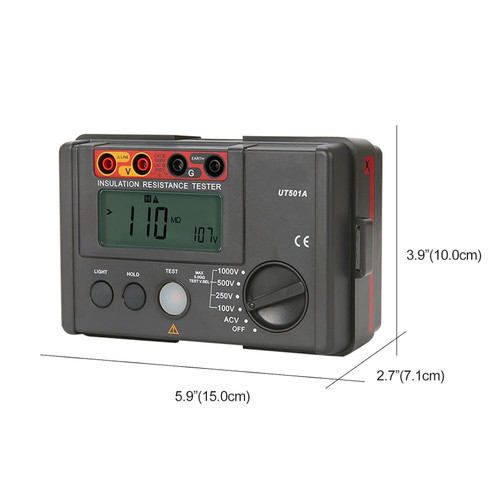

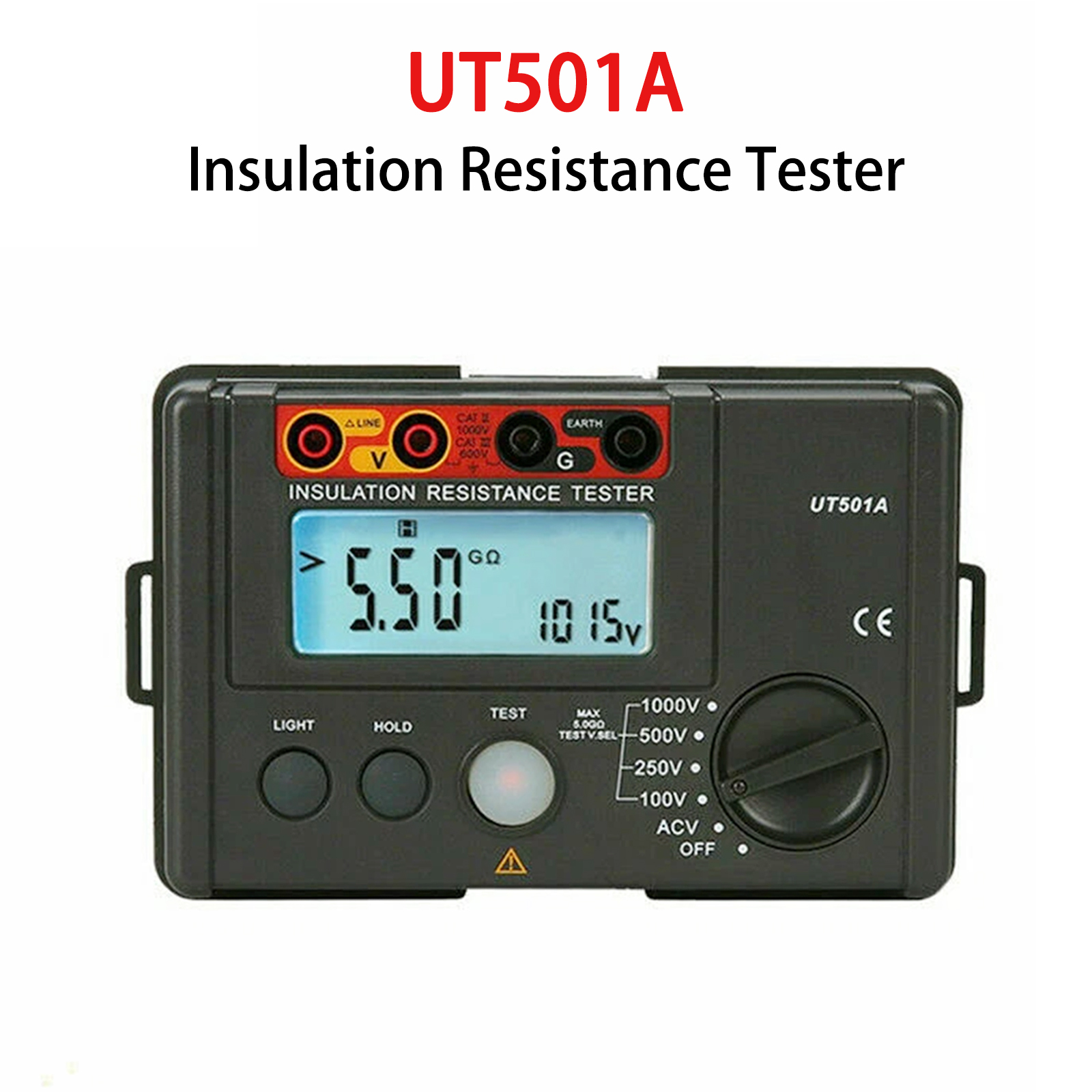

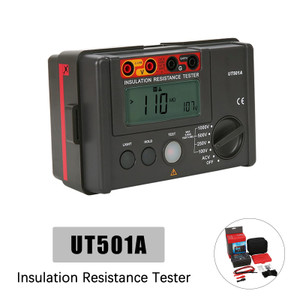

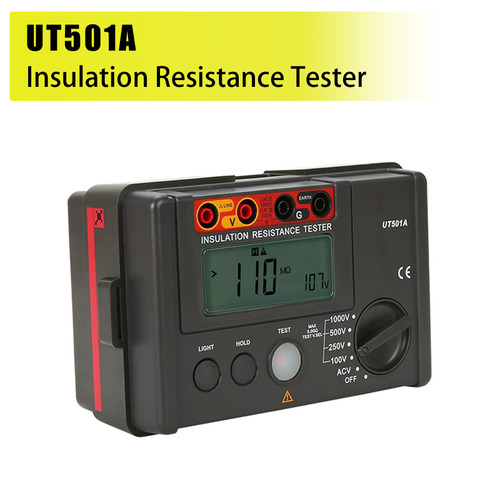

UT501A 1000V Insulation Resistance Meter Ground Tester Megohmmeter Volt

Feature:
1: Automatic measurement
2: Low Battery Indication
3: LCD Backlight
4: Alarm Light Display
5: Alarm Buzzer
6: High Voltage Indication
7: Over Load Indication
8: Auto Disharge
9: Test Voltage Vice Display
10: 10M¦¸ Internal Resistance Test

Specifics:
Condition: 100% Brand New
Type: Insulation Resistance Meter
Model: UT501A
Test voltages. 100V/250V/500V/1000V.
100V. 0M¦¸~100M¦¸.
250V. 0M¦¸~5G¦¸.
500V. 0M¦¸~5G¦¸.
1000V. 0M¦¸~5G¦¸.
Load current. 50V (R=50k¦¸) 1mA/100V (R=100k¦¸) 1mA/250V (R=250k¦¸) 1mA/500V (R=500k¦¸) 1mA /1000V (R=1M¦¸) 1mA.
Short-circuit current <2mA
AC voltage (V). 30V~750V
Power: 1.5V battery(LR6)x 6 (NOT included)

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

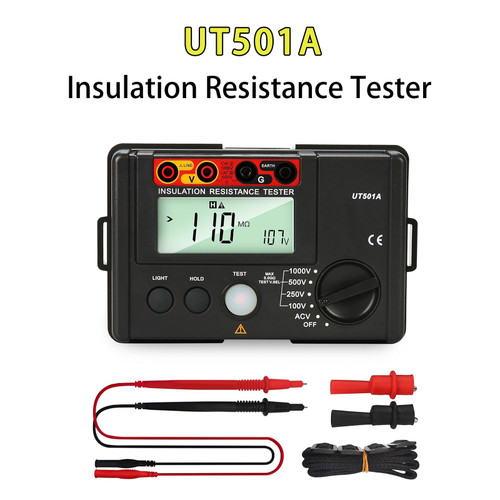

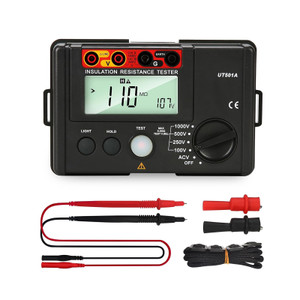

Package Included:
1 x UT501A insulation resistance tester
1 x Test leads (pair)
1 x Alligator clips (pair)
1 x Elastic strap
1 x User manual
1 x Packaging box
