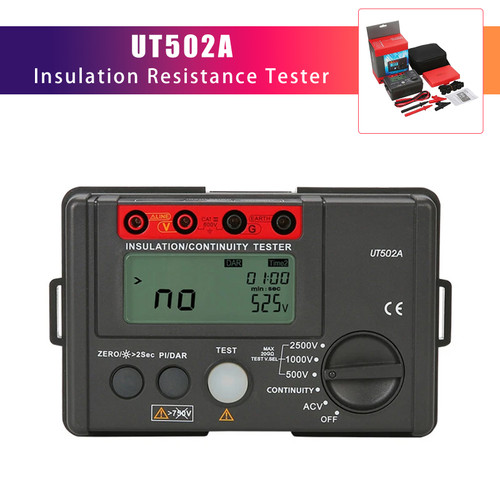

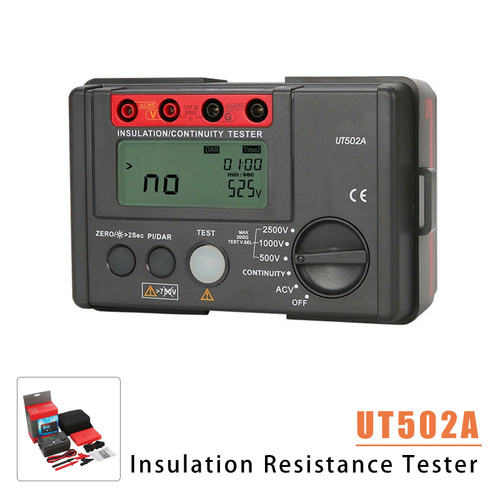

UT502A 2500V Insulation Resistance Meter Ground Tester Megohmmeter Volt

Feature:
1: 2000 count LCD display, overload indication, backlight.
2: AC voltage measurement, auto power off.
3: Auto discharge.
4: Continuous measurements mode, red warning light and buzzer function.
5: Continuous low resistance measurement.
6: PI and DAR measurement, auto resistivity calculation.
7: Low resistance returning to zero function to improve accuracy.

Specifics:
Condition: 100% Brand New
Type: Insulation Resistance Meter
Model: UT502A
Insulation resistance (¦¸)
Test voltages. 500V/1000V/2500V
500V. 0M¦¸~5G¦¸
1000V. 0M¦¸~5G¦¸
2500V. 0M¦¸20G¦¸
Load current. 50V (R=50k¦¸) 1mA/100V (R=100k¦¸) 1mA/250V (R=250k¦¸) 1mA/500V (R=500k¦¸) 1mA/1000V (R=1M¦¸) 1mA/2500V (R=1M¦¸) 1mA
Short-circuit current. <2mA
Low resistance (¦¸). 0.01¦¸~200¦¸ (about 5.0V/200mA)
AC voltage (V). 30V~600V
DAR. 60s/15s and 60s/30s
Power: 1.5V battery(LR6)x 6 (NOT included)

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1 x UT502A insulation resistance tester
1 x Test leads (pair)
1 x Alligator clips (pair)
1 x Elastic strap
1 x Test probes (pair)
1 x User manual
1 x Packaging box
