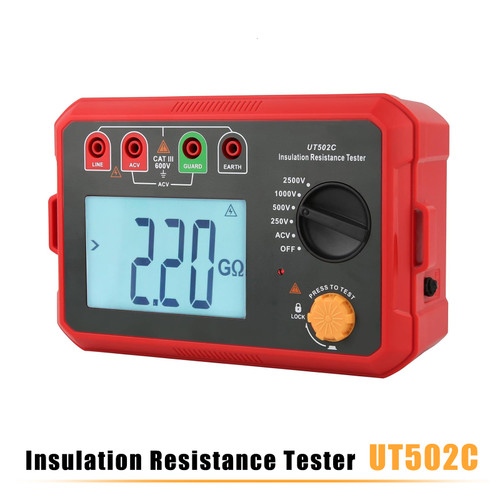

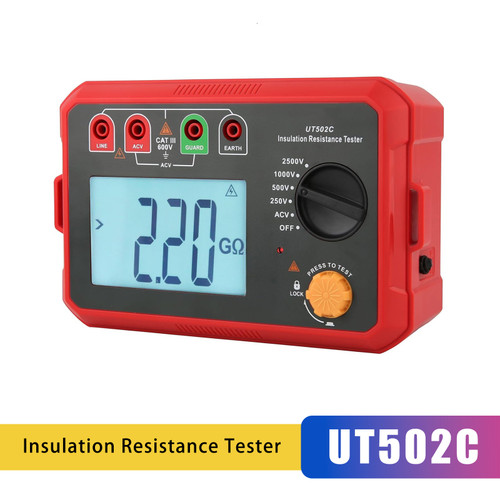

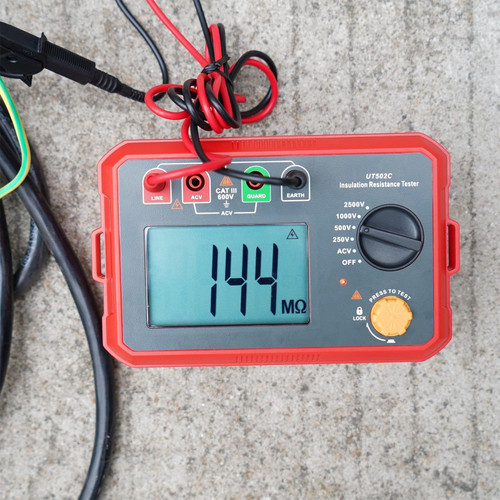

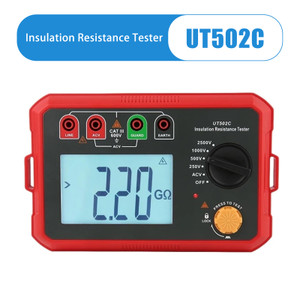

UT502C 2500V Insulation Resistance Meter Ground Tester Megohmmeter Volt

Feature:
1: Insulation resistance
2: AC voltage
3: Buzzer alarm
4: Backlight display
5: Automatic shutdown
6: Voltage reminder
7: Maximum output voltage of 2500V
8: With four selectable voltage levels: 250V, 500V, 1000V, and 2500V
9: The maximum measurement range is 20G¦¸.
10: It supports multiple measurement modes, including single measurement and continuous measurement.

Specifics:
Condition: 100% Brand New
Type: Insulation Resistance Meter
Model: UT502C
Insulation resistance
Output Voltage: 250V
Measurement Range: 0.00M-500M

Output Voltage: 500V
Measurement Range: 0.00M-2.00G

Output Voltage: 1000V
Measurement Range: 0.00M-5.00G

Output Voltage: 2500V
Measurement Range: 0.00M-20.0G

Accuracy
0.00M-99.9M: ¡À(3%+5)
100M-9.99G: ¡À(5%+5)
10.0G-20.0G: ¡À(10%+5)
Voltage Measurement Range: AC: 30V-750V (50Hz/60Hz), ¡À(2%+3)
Short-Circuit Current: <2mA
Power: 1.5V battery(LR6)x 6 (NOT included)

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

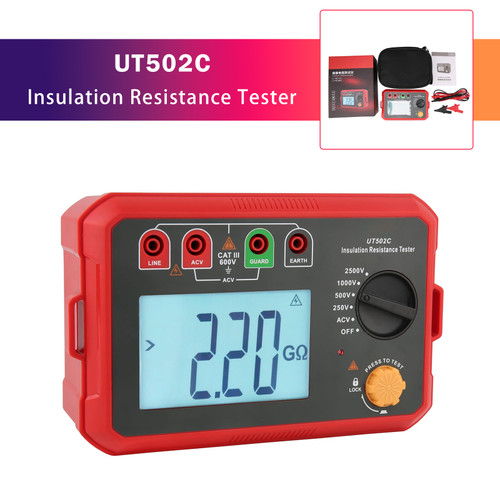

Package Included:
1 x UT502C insulation resistance tester
1 x Test leads (pair)
1 x Alligator clips (pair)
1 x User manual
1 x Packaging box
