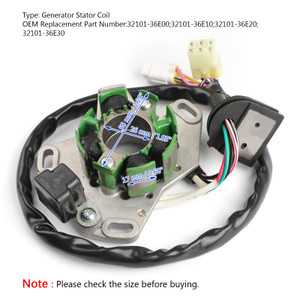

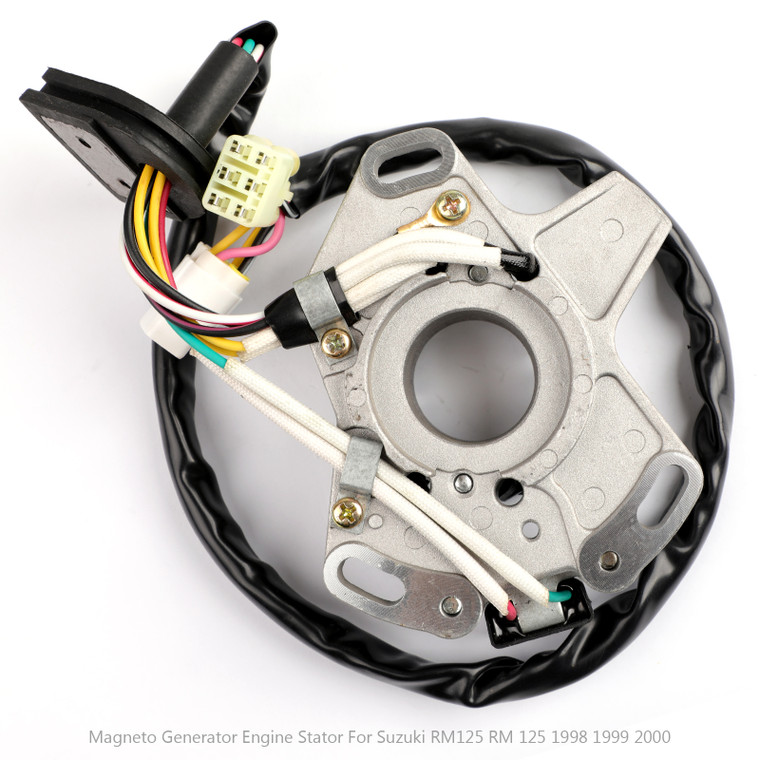

Magneto Generator Engine Stator For Suzuki RM125 RM 125 1998 1999 2000
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number:
32101-36E00
32101-36E10
32101-36E20
32101-36E30
Dimensions :
Interior diameter : 26 mm / 1.05"
Exterior diameter : 58 mm / 2.28"
Thickness : 17 mm / 0.68"
Other specifications :
Number of wires : 10
Number of pins : 10
Number of plugs : 2
Number of fixation holes: 3
FITMENT:
Fits Suzuki RM125 1998-2000
PACKAGE INCLUDED:
1x Generator Stator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
